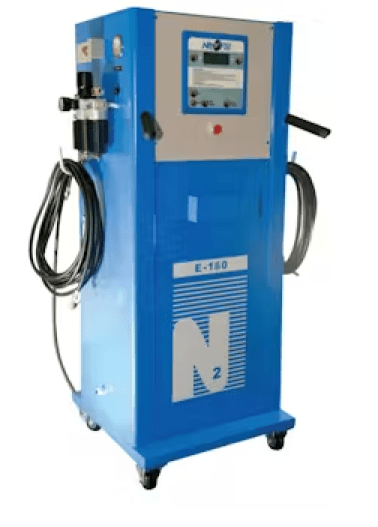

NitroFill E-160
SKU: NF-E-160
NitroFill E-160 NITROGEN GENERATION AND CONVERSTION SYSTEM
The NitroFill E-160 Nitrogen Generation and Conversion Station combines legendary NitroFill performance and durability with unprecedented value. The E-160 looks and operates just like our workhorse E-170 but provides a more modest 6 cfm output. The E-160 is the perfect unit for any facility servicing any number of cars, and smaller pick-ups and SUV's. It converts up to 4 tires to NitroFill simultaneously at the touch of a button and provides instant and uninterrupted flow with guaranteed purity up to 99.9%
Product Information & Features
- Converts up to 4 tires to NitroFill simultaneously at the touch of a button.**
- Complete, Turn-Key, fully assembled system, nothing else to buy.
- Fully automated, fully programmable, micro-processor controlled conversion system.
- Advanced Mode Options including; "Auto-On," "Auto-Off," "Over-Pressure," and more.
- Comprehensive error reporting and self-diagnostic features.
- Large back-lit LCD display with audio and visual signals.
- Advanced PSA design generation system.
- Twin, exterior mounted high performance inlet air filters.
- Instant and uninterrupted flow with guaranteed purity up to 99.9%
- 6 cfm outpout and optional storage tank make the E-160 a fit for most automotive service facilities.
GENERAL SPECIFICATIONS
Power Requirement ......................100-120Vac 50/60Hz
Operating Temperature............................-4°F to 158° F
Compressed Air Input Range .................... 125-150psi
Compressed Air Quality .............. 0.01ppm
Nitrogen Purity ............................. 95-99+% (Adjustable)
Nitrogen Output... ........................ 6 CFM rated at 160psi, 80° F
Maximum Nitrogen Pressure in Tank ...........................120psi
Operating Range......................5-90psi
Recommended Inlet Supply Pressure..............................44psi above the maximum set pressure of the unit
Accuracy............................+/-1 psi
Display Increments........................1 psi
Units of Measurement...................psi, kPa, bar
Shipping Weight......................320 Pounds
Dimensions (Container).................57"H x 28.5" W x 26" D
Dimensions (Unit).............................52"H x 28" W x 24" D
