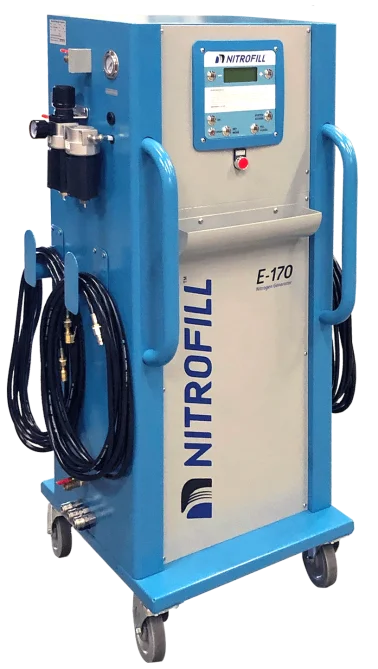

NitroFill E-170
SKU: NF-E-170
Short Description:
NitroFill E-170 NITROGEN GENERATION AND CONVERSTION SYSTEM
The NitroFill E-170 is the standard against which all other automotive nitrogen generation systems are measured. With more units in service than most other models and manufacturers combined, the NitroFill E-170 has earned a reputation for unrivaled performance and durability...and now it's even better. We have made the fastest, most efficient and easiest to use system on the planet even faster, more efficient and easier to use by upgrading our patented design and technology to provide quicker conversions and an amazing 13.5 cfm output!
Product Information & Features
• Converts up to 6 tires to NitroFill simultaneously at the touch of
a button. ··
• Complete, Turn-Key, fully assembled system, nothing else to buy.
• Fully automated, fully programmable, micro-processor controlled
conversion system.
• Advanced Mode Options including; "Auto-On," "Auto-Off,"
"Over-Pressure," and more .
• Comprehensive error reporting and self-diagnostic features.
• Large back-lit LCD display with audio and visual signals.
• Advanced PSA design generation system.
• Twin, exterior mounted high performance inlet air filters.
• Instant and uninterrupted flow with guaranteed purity up
to 99.9%.
• One size fits all design. "Best in Class" 13.5 cfm output and
optional storage tank make the E-170 a fit for almost any size
automotive service facility.
GENERAL SPECIFICATIONS
Power Requirement ..................... 100-120Vac 50/60Hz
GENERAL SPECIFICATIONS
Power Requirement ..................... 100-120Vac 50/60Hz
Operating Temperature ............... -4°F to 158° F
Compressed Air Input Range ...... 100-200psi
Compressed Air Quality .............. 0.01ppm
Nitrogen Purity ............................. 95-99+% (Adjustable)
Nitrogen Output... ........................ 13.5 CFM rated at 160psi, 80° F
Maximum Nitrogen Pressure in Tank ........................... 145-174psi
Operating Range...........................5-162psi
Recommended Inlet Supply Pressure............................44psi above the maximum set pressure of the unit
Recommended Inlet Supply Pressure............................44psi above the maximum set pressure of the unit
Accuracy .................................... +/-1 psi
Display lncrements .................. 1 psi
Units of Measurement. ...........psi, kPa, bar
Shipping Weight .....................465 Pounds
Dimensions (Container) ......... .57"H x 28.S"W x 26"0
Dimensions (Unit) ................... .52"H x 28"W x 24"0
